A Month worth of wiring

by Posted on

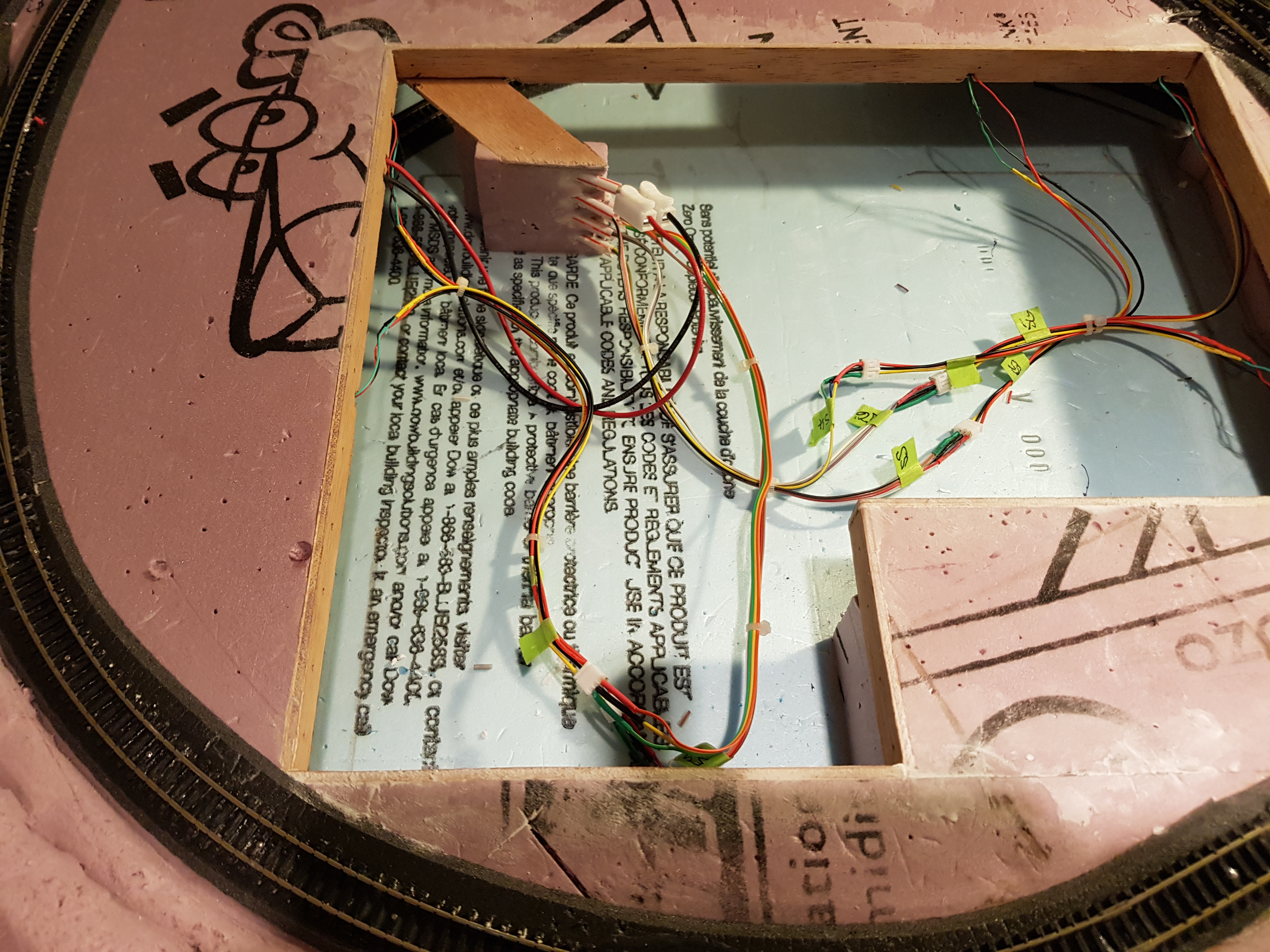

Power and switches for the mining site

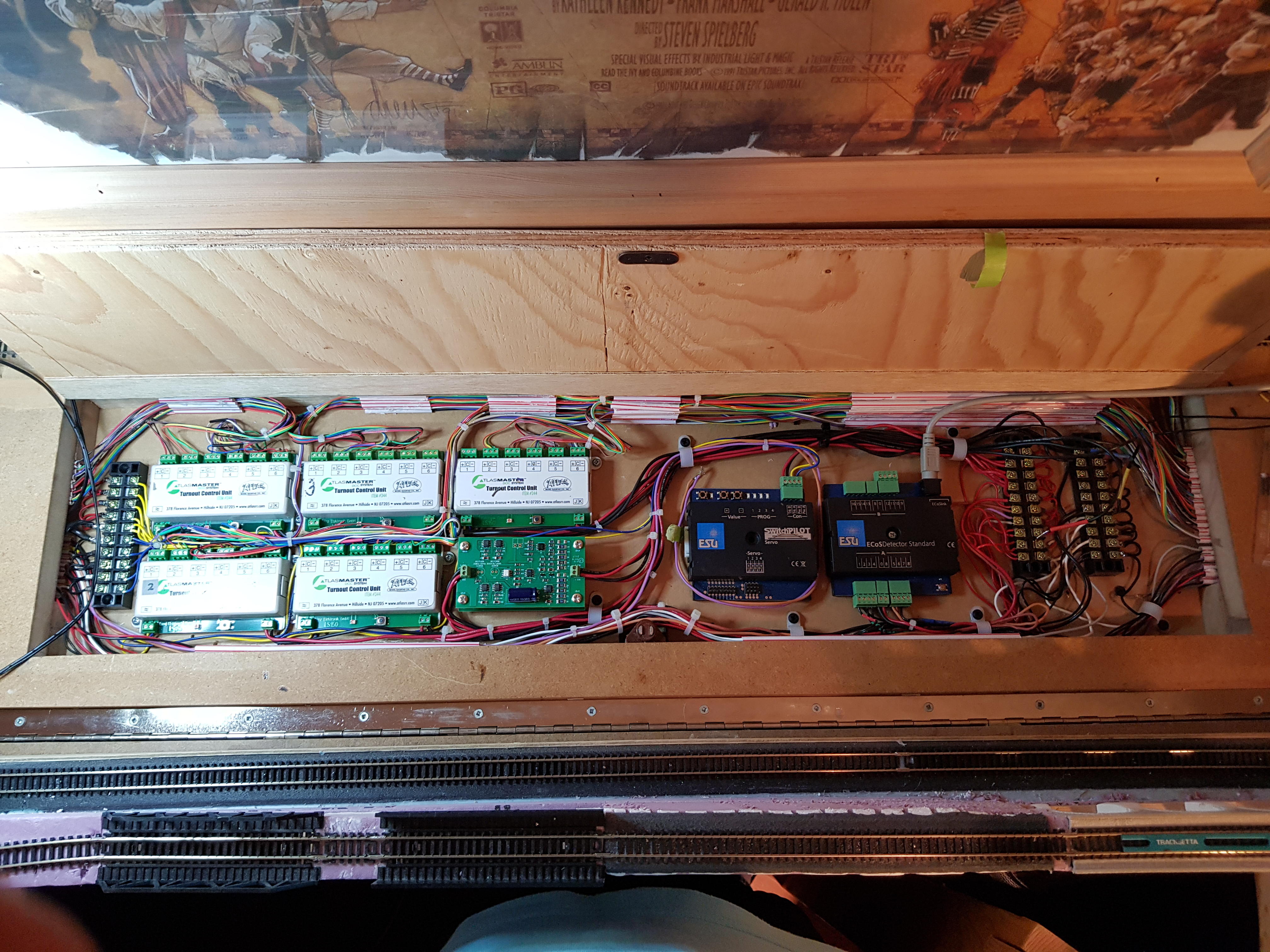

All switches and power connected

Not much to show but boring technical stuff.  The other half, unshown the DCC setup off all the zones and switches on the ECoS controller.



Also Connected 2 DCC auto-reverse boards. The other ESU box I hope to use to run the Atlas turntable.





Next month fun stuff ballasting the tracks.

Published by Kim Geddes
